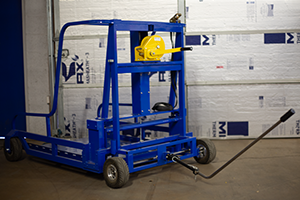

LIFTING DECK TRAILER
800lb weight capacity
Versatile, efficient, and safe transportation.
Ideal for towing heavy equipment on casters. Easily roll equipment on to deck and raise using winch, to transport up to 800lbs across your facility.

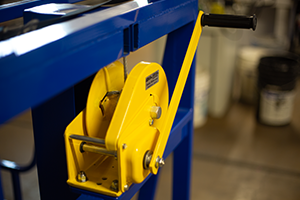

WINCH
• 16-gauge stainless steel deck along full area of trailer
• End bracing is tig welded, 14-gauge square tubing, powder coated for durability, corrosion and abrasion resistance, ease of maintenance and overall toughness.

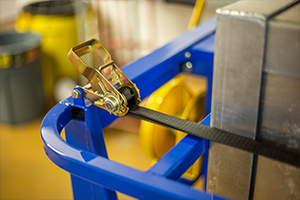

BUILT-IN STRAP
• Sturdy steel, removable, square tube end panels, steel bracing secure each end of the SS cargo deck of the trailer for ease of access and positive locking when moving.
PULL HANDLE
• Equipped with removable steering arm.
• Fully tig welded, 14-gauge steel, powder coated 4-wheel steering chassis.
LIFTING DECK TRAILER
| SPECS | |
|---|---|
| Overall Length | 76 inches |
| Overall Width | 48 inches |
| Height | 47 inches |
| Wheel Base | 55 inches |
| Ground Clearance | 2.5 inches |
| Aisle and “T” Intersection Turning Radius | 82 inches |
| Outside Turning Radius | 25 inches |
| Weight | 350 lbs |
*Specifications are subject to change without notice. Copyright ©2020, METrans, LLC. All Rights Reserved.
