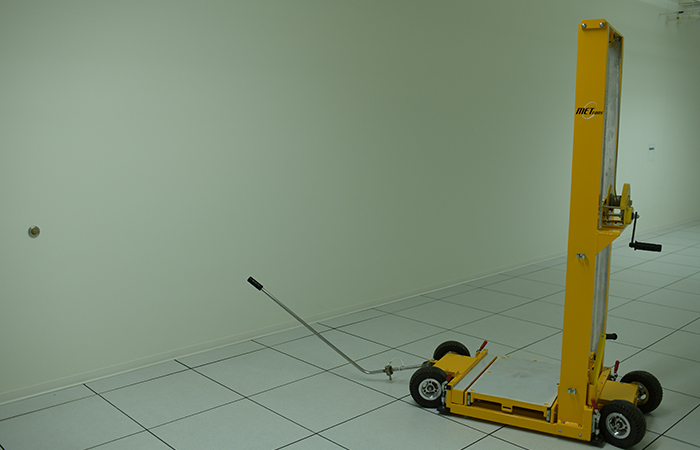

Server
Rack Lifter
Specifically designed and tested for operation in all data center environments, including aluminum floors
Ensures accurate alignment of equipment and eliminates risk to personnel and equipment.
Features
Discover the dual capabilities of our transport solution, tailored to optimize maneuverability and security within Data Centers.
DUAL CAPABILITIES
Efficient Loading/Unloading: Ideal for confined spaces, allowing for seamless handling of equipment in tight areas.
Safe Operation: Optional foam-filled balloon tires ensure stability on raised floors by reducing vibration.
SLIDING RACK
650lb Capacity: Built for transporting heavy IT components with ease.
Superior Maneuverability: Stable and highly mobile, even in tight spaces like elevators.
PULL HANDLE
Removable Steering Arm: Easily detachable for enhanced handling.
Lightweight Construction: Tig-welded aluminum reduces weight and lowers the trailer’s center of gravity.

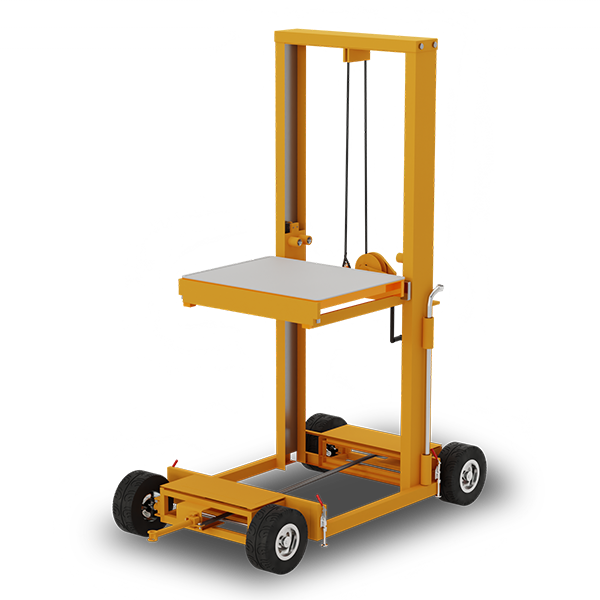

SERVER RACK LIFTER 48U – 52U
| SPECS | 48U | 52U |
|---|---|---|
| Overall Length | 60 inches | 60 inches |
| Overall Width | 26.7 inches | 30 inches |
| Height | 79 inches | 91 inches |
| Wheel Base | 32.5 inches | 32.5 inches |
| Ground Clearance | 1 inch | 1 inch |
| Aisle and “T” Intersection Turning Radius | 44 inches | 44 inches |
| Outside Turning Radius | 72 inches | 72 inches |
| Weight | 213 lbs | 213 lbs |
*Specifications are subject to change without notice. Copyright ©2020, METrans, LLC. All Rights Reserved.
