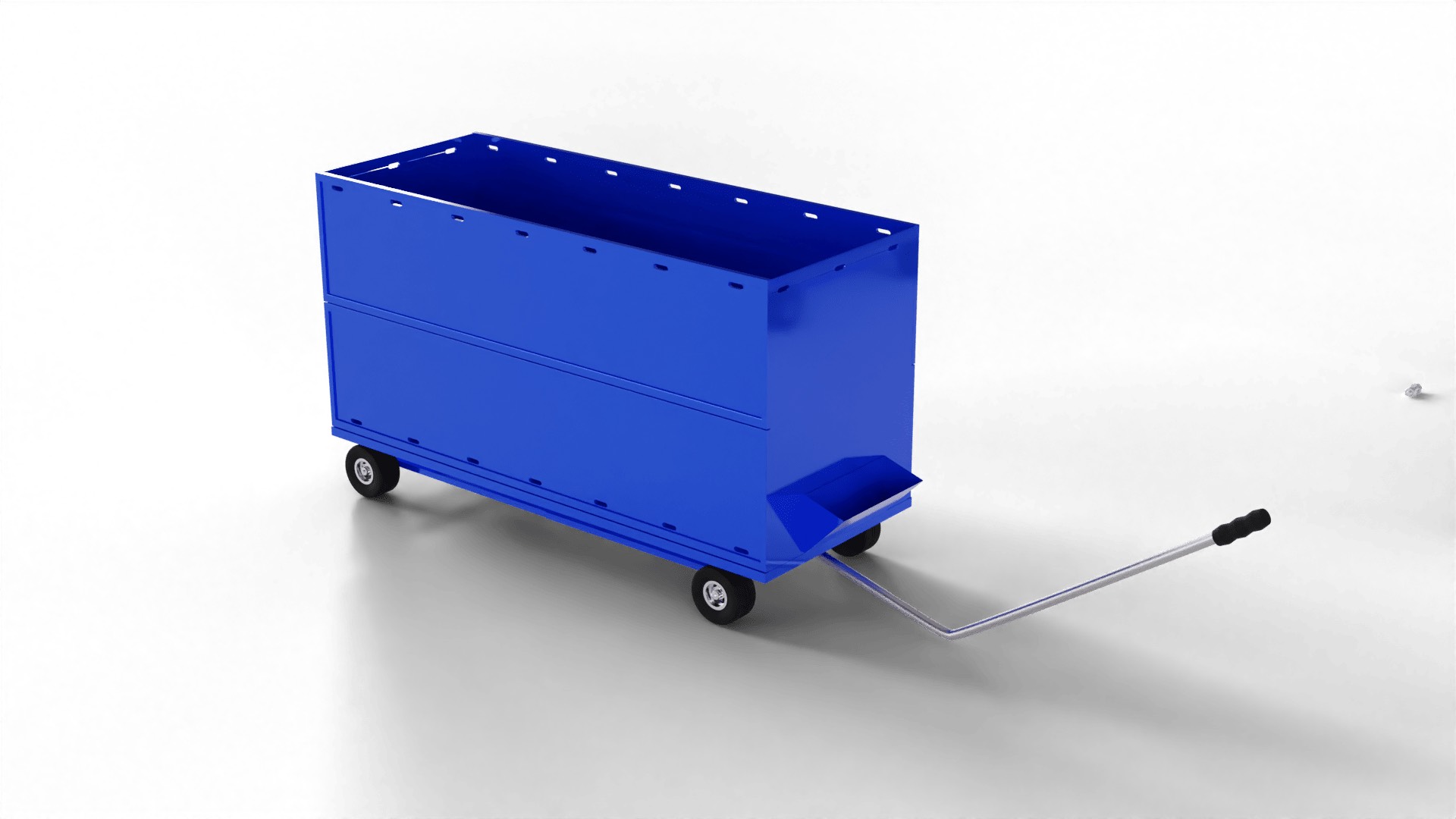

CARGO SIDE LOADER

Standard in 40″ and 72″

Equipped with sides that fold down, access cargo easily and safely.

An innovative solution for trash collection, general maintenance, and carrying various types of cargo with an 800lb weight capacity. OSHA approved.

CLIPS SECURE THE SIDES

• Equipped with an easy-to-install bungee net that, when installed, increases the volume of the trailer by approximately 1/3.

• Each component is powder coated for durability, corrosion and abrasion resistance, ease of maintenance and overall toughness.

DRAINS

• Water resistant 2″ deep liquid collection area at the bottom of the trailer body, with two built-in gasketed stainless steel drains.

WHEEL CHOCKS AND PULL HANDLE

• Equipped with removable steering arm.

• Comes with two rubber wheel chocks.

• 4-wheel steering.

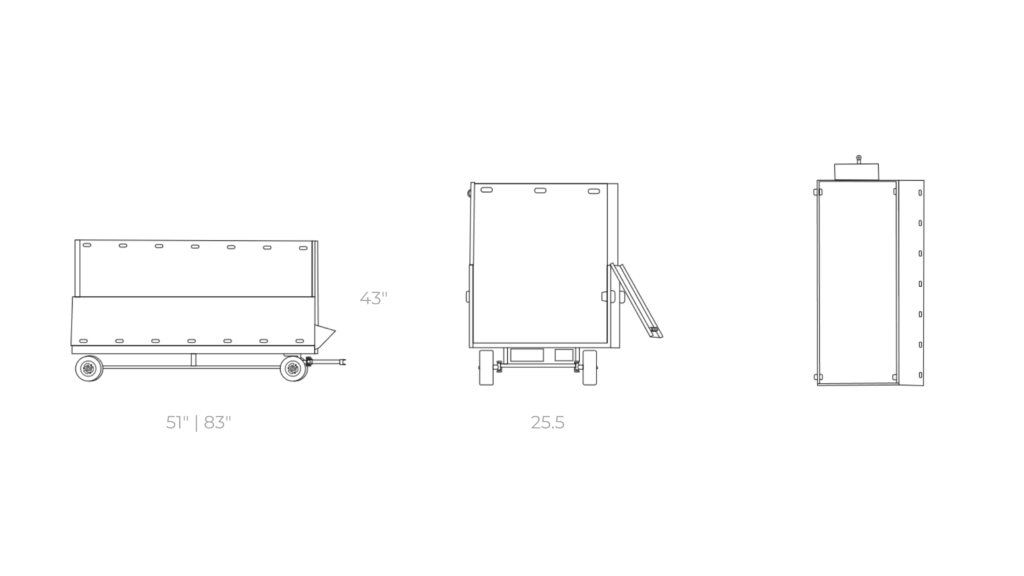

CARGO SIDE LOADER 40″

SPECS
Overall Length 99 inches
Overall Width 25.5 inches
Height 34 inches
Wheel Base 65 inches
Ground Clearance 3 inches
Aisle and “T” Intersection Turning Radius 48 inches
Outside Turning Radius 12 inches
Weight 143 lbs



CARGO SIDE LOADER 72″

SPECS
Overall Length 122 inches
Overall Width 25.5 inches
Height 34 inches
Wheel Base 65 inches
Ground Clearance 3 inches
Aisle and “T” Intersection Turning Radius 54 inches
Outside Turning Radius 15.83 inches
Weight 195 lbs



*Specifications are subject to change without notice. Copyright ©2020, METrans, LLC. All Rights Reserved.
