FLATBED TRAILER

Standard in 40″ and 72″

Versatile, efficient, and safe transportation.

This stainless-steel flatbed provides unrestricted, easy loading/unloading of cargo in confined areas. Tow up to 1000lbs.

PLACE FOR HOOKS

• 16-gauge stainless steel deck along full area of trailer

• End bracing is tig welded, 14-gauge square tubing, powder coated for durability, corrosion and abrasion resistance, ease of maintenance and overall toughness.

REMOVABLE ENDS

• Sturdy steel, removable, square tube end panels, steel bracing secure each end of the SS cargo deck of the trailer for ease of access and positive locking when moving.

PULL HANDLE

• Equipped with removable steering arm.

• Fully tig welded, 14-gauge steel, powder coated 4-wheel steering chassis.

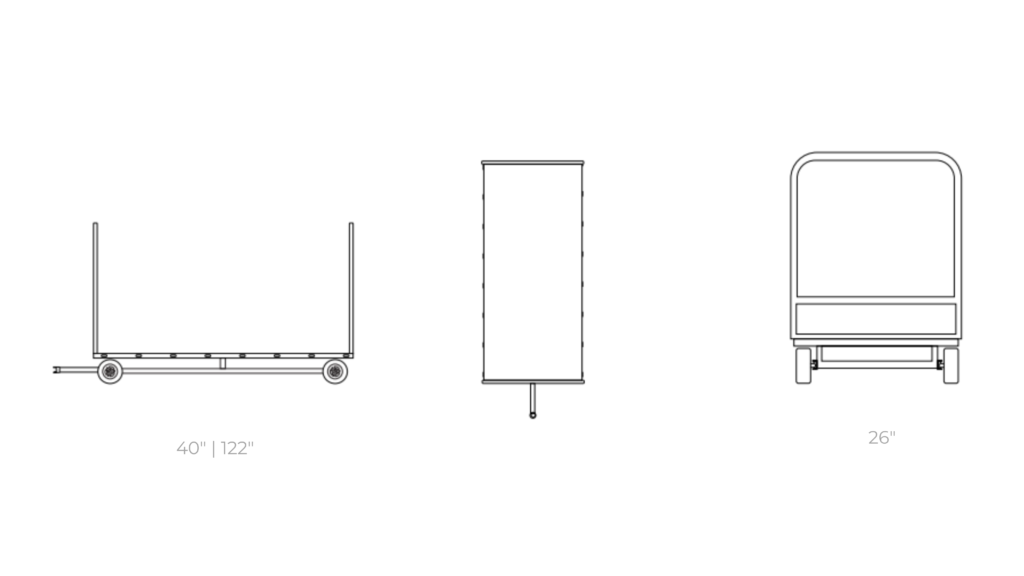

FLATBED TRAILER 40″

SPECS
Overall Length 45 inches
Overall Width 25.5 inches
Height 45 inches
Wheel Base 34 inches
Ground Clearance 2.5 inches
Aisle and “T” Intersection Turning Radius 48 inches
Outside Turning Radius 12 inches
Weight 180 lbs



FLATBED TRAILER 72″

SPECS
Overall Length 76.5 inches
Overall Width 25.5 inches
Height 45 inches
Wheel Base 65 inches
Ground Clearance 2.5 inches
Aisle and “T” Intersection Turning Radius 54 inches
Outside Turning Radius 15.83 inches
Weight 280 lbs



*Specifications are subject to change without notice. Copyright ©2020, METrans, LLC. All Rights Reserved.
